Technical Data Sheet
Dimensions, flow, material limits and installation limits for all three pipe sizes (14, 17 and 19 mm).
Rev 2.4
Technical data · TDS REV 2.4
Specifications

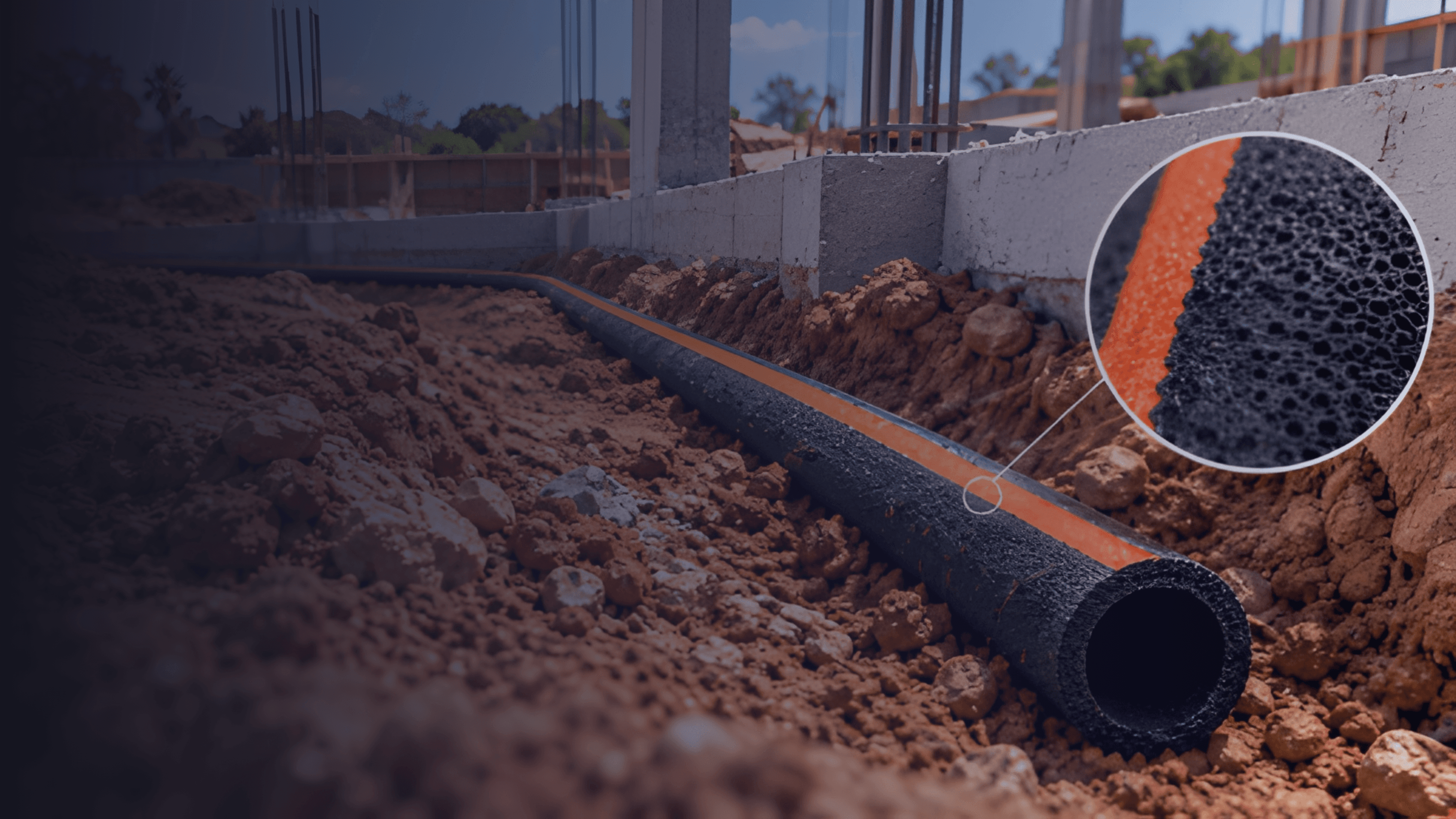

Elastomeric Reticulation Pipe in three sizes, supplied on 125 m rolls with a coloured marking line for identification on site.
Reports & certificationsChoose a size
Match the pipe to the load above it.

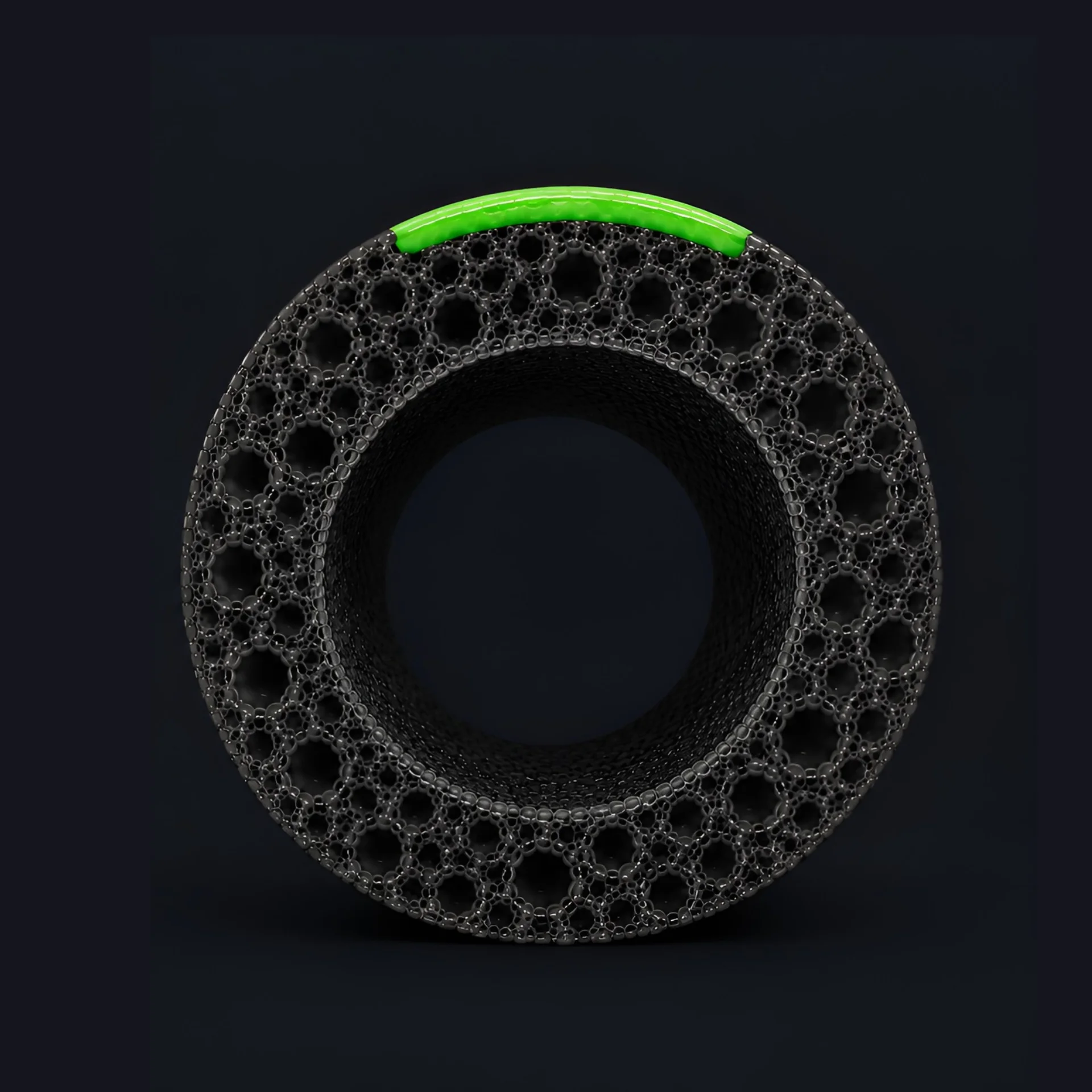

TP125175 · Green line
Standard size for all areas, including ground level. Uniform flow and good weight support.
- Inside × outside
- 12.5 × 17.5 mm
- Hole density
- 50–80 per m
- Flow @ 0.5 kg/cm²
- 16–30 L/m/hr
- Min. bend radius
- 0.3 m / 1 ft
- Fittings
- 16 mm
- Roll
- 125 m
Flow & performance
By product code
| Parameter | TP095145 · 14 mm | TP125175 · 17 mm | TP125195 · 19 mm |
|---|---|---|---|
| Inside × outside diameter | 9.5 × 14.5 mm | 12.5 × 17.5 mm | 12.5 × 19.5 mm |
| Marking line | Orange | Green | Red |
| Suitable for | Limited space between slab and tile | All areas, including ground level | High load bearing |
| Micro-hole size | 0.2–1.0 mm | 0.2–1.0 mm | 0.2–1.0 mm |
| Hole density, per metre | 40–70 | 50–80 | 60–100 |
| Designed flow per m/hr @ 0.5 kg/cm² | 14–24 L | 16–30 L | 16–30 L |
| Minimum bending radius | 0.3 m / 1 ft | 0.3 m / 1 ft | 0.4 m / 1.2 ft |
| Fitting size | 12 mm | 16 mm | 16 mm |
| Roll length | 125 m | 125 m | 125 m |
Accessory system
Every fitting, sized to the pipe.
12 mm fittings for the 14 mm line; 16 mm fittings for the 17 and 19 mm lines. Brass nipples and couplings are recommended at junction boxes so connections last as long as the pipe.
- Straight coupler · in-line joiner
- 90° elbow, tee and 4-way cross · for layout changes
- End seal · closes the end of a run
- Distribution / junction box · wall-mounted charging point
- J-hook clamps and nail-fix clips · fix the pipe to floor or PCC
- Brass nipple & elbow · durable box connections
Reports & certifications
Download the documents behind the data.
Test reports, certificates and technical data for your specification file or tender submission. Check the revision before you submit.
Technical data
For specifiers and site teams
Installation guidelines
Seven site rules, pump and box spacing, and what must be protected before the screed goes down.
Model specification clause
The editable clause from the Architects page, ready to paste into your project specification.
Editable
Test reports
Independent laboratory results
Accelerated weathering test
300 hours, equivalent to about 10 years outdoors. No cracking, blocking or jetting; tensile strength and elongation reduced by about 10%.
Environmental stress-crack resistance
Tested at 50 °C for 24 hours. No slow crack growth.
Termiticide compatibility (EC and SC)
Tested with emulsifiable and suspension concentrates. EC is preferred for flow.
RoHS complianceOn request
Compliant with RoHS Annex II and amendment (EU) 2015/863. We send the full test report within one working day.
Certifications
Check the validity date before you file
ISO 9001:2015 certificate
Manufacturer’s quality management certificate. Covers the process that checks flow rate on every roll before dispatch.
